Load cell – Zemic H3G S-Type

The Zemic H3G S-type load cell is a high-performance weighing sensor designed for both tension and compression applications. Built from durable, nickel-plated alloy steel, the H3G delivers dependable accuracy even in tough industrial environments. With an IP67 protection rating and a wide capacity range, it is ideal for hanging scales, hopper and tank weighing, industrial automation, mechanical weighing systems, and crane or hoist applications. Known for its precision, stability, and robust structure, the H3G remains one of the most trusted S-type load cells used across South Africa’s manufacturing, agricultural, logistics, and engineering sectors.

View Brochure

Get A Quote

Features

• S-type design for tension and compression

• Nickel-plated alloy steel for long-lasting strength

• High accuracy with stable and repeatable output

• IP67 rated for dust and moisture protection

• Excellent resistance to shock and overload

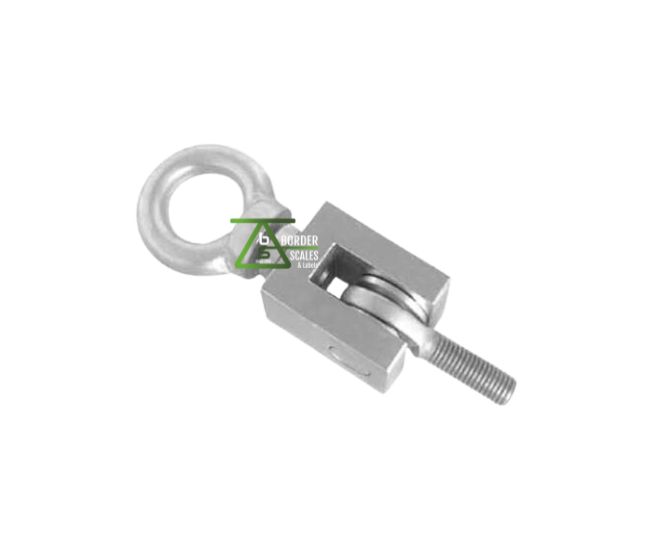

• Easy mechanical integration with standard mounting accessories

• Suitable for industrial and commercial weighing systems

• Wide capacity options to support multiple load requirements

• Strong performance in harsh and outdoor environments

Specifications

• Material: Alloy steel, nickel-plated

• Protection class: IP67

• Output sensitivity: 3.0 mV/V

• Accuracy class: High accuracy, industrial grade

• Safe overload: 150 percent of rated capacity

• Ultimate overload: 300 percent of rated capacity

• Temperature range: -10°C to +40°C (varies by application)

• Load direction: Tension and compression

• Cable: Shielded cable for noise-free signal transmission

• Mounting: Compatible with standard S-type fittings and hardware

Key Specifications

Capacity

S-Type Machine Steel Load cell:

100kg/ 300kg / 500kg/ 1000kg/ 2000kg
