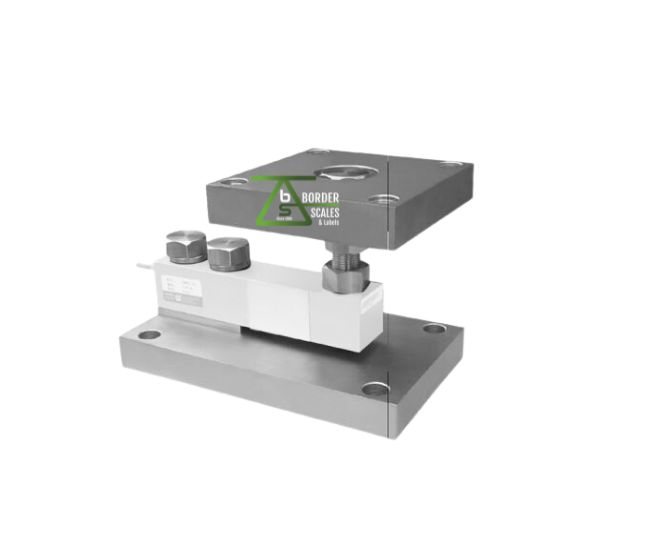

Load cell – Zemic H8C – Shear Beam

The Zemic H8C Load Cell is a high-performance, nickel-plated alloy steel shear beam load cell designed for industrial weighing systems that require accuracy, durability, and long-lasting stability. Engineered to deliver reliable performance in harsh environments, the H8C is ideal for floor scales, platform scales, hopper weighing, silo systems, batching processes, and industrial automation projects. Also available in B8D fully stainless-steel construction.

With its IP67 protection, the H8C is resistant to dust, moisture, and demanding industrial conditions, ensuring consistent output and dependable performance with every use. Whether you’re upgrading existing equipment or building a new weighing system, the Zemic H8C offers exceptional value, precision, and strength.

View Brochure

Get A Quote

Features

• High-strength nickel-plated alloy steel for exceptional toughness and durability

• Also available in B8D fully stainless-steel

• IP67 environmental protection – resistant to dust and water

• Shear beam design ensures stable, accurate performance

• Suitable for industrial applications such as platform scales, floor scales, hopper and tank weighing

• High accuracy class C3.

• Excellent long-term stability and repeatable output

• Designed for easy installation and integration into most weighing systems

• Compatible with a wide range of industrial indicators and mounting hardware

Key Specifications

• Material: Nickel-plated alloy steel

• Protection class: IP67

• Design type: Shear beam

• Output sensitivity: 2.0 ± 0.1 mV/V (typical)

• Accuracy class: OIML C3

• Safe overload: 120% of rated capacity

• Ultimate overload: 300%

• Operating temperature range: −10°C to +40°C

• Creep & repeatability: High-precision industrial standard

• Sealing: Hermetically protected

Key Specifications

Capacity

100kg | 250kg | 500kg | 1000kg

2000kg | 5000kg | 10 000kg
