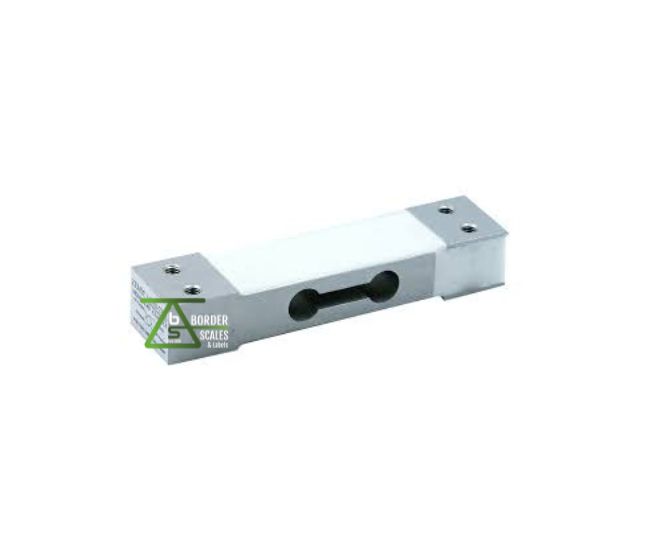

The Zemic L6D Aluminium Load Cell is a high-precision, single-point load cell designed for small to medium-capacity weighing applications. Constructed with a durable aluminium-alloy body and anodised surface, this load cell delivers reliable and consistent performance. Its compact design, combined with IP65 ingress protection, ensures suitability for bench scales, retail scales, postal scales, counting scales, and laboratory balances. The L6D is engineered for accuracy even when loads are slightly off-centre, making it a versatile solution for commercial and industrial weighing applications.
| Delivery destination |
Delivery time |
| Border Kei Region |
2-4 working days |
| Regional Area |
3-5 working days |
| Remote Area |
3-7 working days |
Features
-
Single-point load cell design for accurate off-centre weighing
-
Durable aluminium-alloy construction with anodised finish
-
IP65 rated for protection against dust and water spray
-
Compact and lightweight design for easy installation
-
Stable and reliable measurement over time
-
Suitable for small to medium-scale weighing applications
-
High repeatability and linearity performance
Specifications
-
Rated Capacity: 6 kg, 10 kg, 20 kg, 30 kg, 50 kg
-
Excitation Voltage: 5–15 V DC
-
Output Sensitivity: 2.0 mV/V
-
Nonlinearity: ≤0.03% F.S.
-
Hysteresis: ≤0.03% F.S.
-
Temperature Effect on Zero: ≤0.03% F.S./10°C
-
Temperature Effect on Span: ≤0.03% F.S./10°C
-
Safe Overload: 150% of rated capacity
-
Ultimate Overload: 200% of rated capacity
-
Recommended Platform Size: Up to 250 × 350 mm
-
Ingress Protection: IP65
Key Specifications
- Capacity
- 6kg | 10kg | 20kg | 30kg | 50kg
